20″ Wide Angled Bowl Combination Unit – Rear Access, Floor Outlet, Floor Mounted

Model: ECF-2046-ON
Security Market

Security

EPA WaterSense

EPA WaterSense

Willoughby 2046 Series combination lavatory/toilet units are designed for security environments that need a single-user fixture with an angled toilet bowl. Fixture damage and exposed plumbing can increase maintenance, downtime, and labor costs. All-welded 14 gauge Type 304 stainless steel and protected rear connections help reduce misuse and support long-term service.

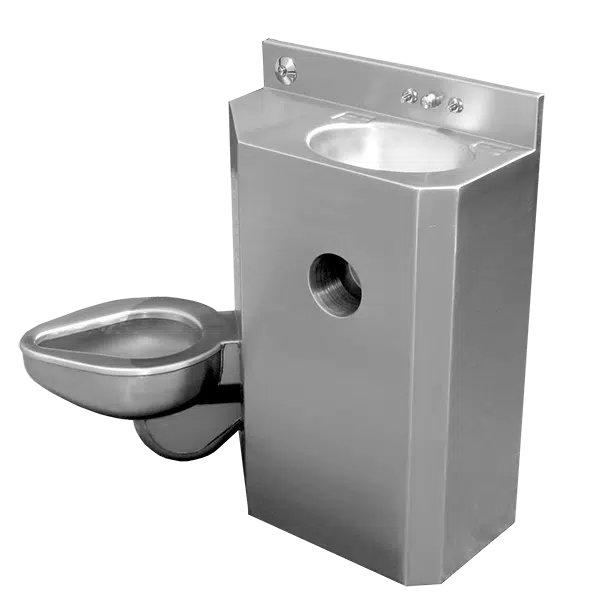

20″ Wide Angled Bowl Combination Lavatory Toilet Unit
Images may include optional components. Refer to specs for standard configuration.

Technical Overview

The Willoughby 20″ Wide Combination Lavatory/Toilet Unit (2046 Series) is a single-user fixture with an angled toilet bowl for use in security environments, typically with 45-degree mechanical chases.



Our combis are all-welded, fabricated from 14 gauge, Type 304 stainless steel polished to a #4 satin finish. Standard 2046 Series fixtures come with angled elongated blowout toilet, oval lavatory, and standard 4-point mounting. Our 20″ Wide Combination Unit can be supplied with a variety of optional features including valves, controls, plumbing, etc. All connections between the outside plumbing and the fixture are made within or at the rear of the vandal-resistant, stainless steel cabinet.

Downloads

Photo Gallery

These images capture the quality and craftsmanship you can expect in every purchase.

Images may include optional components. Refer to specs for standard configuration.

Related Products

Specifications

WaterSense Certification
WaterSense-labeled product certified by CSA Group
*WaterSense label for fixtures with 1.28 GPF HET flush value.
