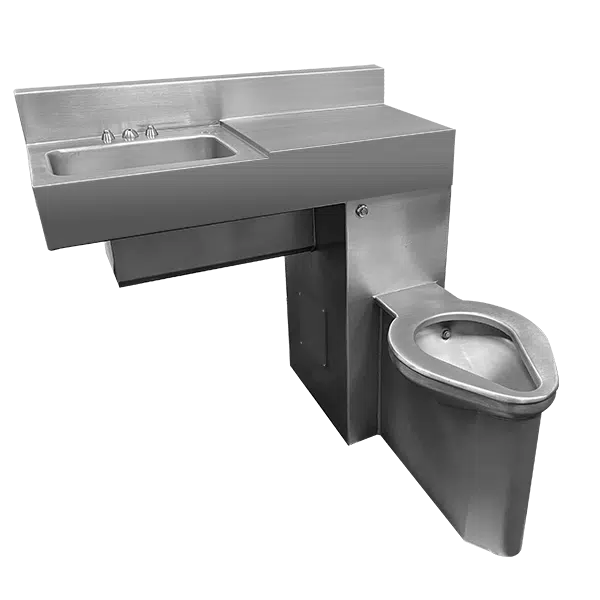

The Willoughby 37″ Wide Combination Lavatory/Toilet Unit (3696-FA Series) is an ADA-compliant front access single-user fixture for use in security environments where a mechanical chase is either non-existent or difficult to access. The fixture is designed for surface mounting on a 90-degree interior wall.
Fixtures are all-welded, fabricated from 14 gauge, Type 304 stainless steel polished to a #4 satin finish. Standard 3696-FA Series fixtures come with elongated blowout toilet, oval lavatory, and holes for 5-point anchor mounting (hardware provided by others). This 37″ Wide Combination Unit fixture can be supplied with a variety of optional features including valves, controls, plumbing, etc., factory-installed inside the fixture cabinet (unless noted). All connections between the outside plumbing and the fixture are made within or at the rear of the vandal-resistant, stainless steel cabinet. Removable access panels attached w/ security screws will allow access to all fixture plumbing and mounting points inside.
The 3696-FA Series Combination fixture meets all applicable ADA, UFAS, and ANSI accessibility guidelines; a CBC-compliant model 3696-FA is also available.
