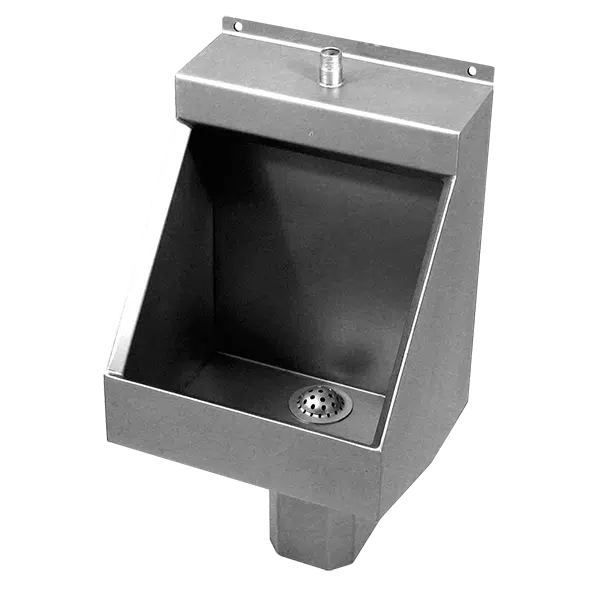

The Willoughby UW-1814-WO-FA Stainless Steel Single Person Front Mounted Washout Flush Trough Urinal is a single-user fixture for use in security environments where a mechanical chase is either non-existent or difficult to access.
Fixtures are all-welded, fabricated from 14 gauge, Type 304 stainless steel polished to a #4 satin finish. Standard UW-1814-WO-FA fixtures come with full perimeter flushing rim, 1-1/2” F.I.P. slip-joint P-trap, removable P-trap enclosure, with anchoring through the included Z-clip and front mounting flanges (anchoring hardware by others).
The UW-1814-WO-FA urinal can be supplied with a variety of optional features including: valves, controls, plumbing, etc. All connections between the outside plumbing and the fixture are made at the bottom and rear or top (depending on inlet location) of the vandal-resistant, stainless steel urinal.
