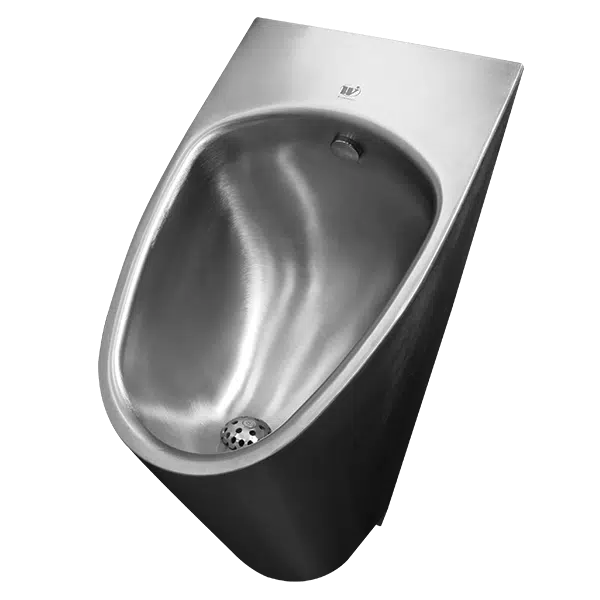

The Willoughby ASUW-1314-HEU-FA Stainless Steel Single Person Front Mounted Ligature-resistant ADA-Compliant Contoured Washout Flush High Efficiency Urinal is a single-user fixture for use in security environments where a mechanical chase is either non-existent or difficult to access.
Fixtures are all-welded, fabricated from 16 gauge, Type 304 stainless steel polished to a #4 satin finish, with contoured interior and exterior surfaces. Standard ASUW-1314-HEU-FA fixtures come with machined stainless steel flush nozzle, 1-1/2” F.I.P. slip-joint P-trap, 3/4” N.P.T. male flush inlet, with anchoring through the included Z-clip and front mounting flanges (anchoring hardware by others). It has been thoughtfully designed to minimize potential ligature points.
The ASUW-1314-HEU-FA urinal can be supplied with a variety of optional features including: valves, controls, plumbing, etc. All connections between the outside plumbing and the fixture are made within ot at the rear of the vandal-resistant, stainless steel urinal. A removable access panel attached w/ security screws allows access to all fixture plumbing inside.
The ASUW-1314-HEU-FA urinal fixture meets all applicable ADA, CBC, ANSI, and UFAS accessibility guidelines when mounted at the correct applicable rim height above the finished floor.
