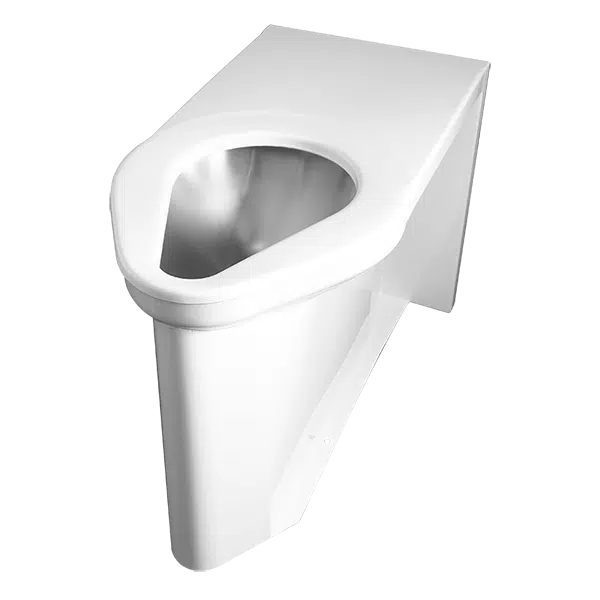

The Willoughby ASETWS-1490-FM ligature-resistant, rear mounted, wall outlet, floor mounted, siphon jet series toilet is a single-user fixture for use in security or behavioral environments with an accessible mechanical chase.
Fixtures are all-welded, fabricated from 14 gauge, Type 304 stainless steel polished to a #4 satin finish. Standard ASETWS-1490-FM fixtures come with an elongated siphon jet toilet bowl and standard 6-point floor mounting (4 in-wall, 2 in-floor). It has been thoughtfully designed to minimize potential ligature points.
The ASETWS-1490-FM toilet can be supplied with a variety of optional features including: valves, controls, plumbing, etc. All connections between the outside plumbing and the fixture are made at the rear (and top, on Top Spud fixtures*) of the vandal-resistant, stainless steel toilet.
The ASETWS-1490-FM toilet fixture meets all applicable ADA, CBC, UFAS, and ANSI accessibility guidelines when ordered with the “HC” (18” Seat Height, Handicap-ADA Compliant) option.
*When specifying an ASETWS-1490-FM with Top Spud inlet, it is recommended to order an ASFVC-Series Flush Valve Cover to help maintain the overall ligature-resistance of the fixture.
