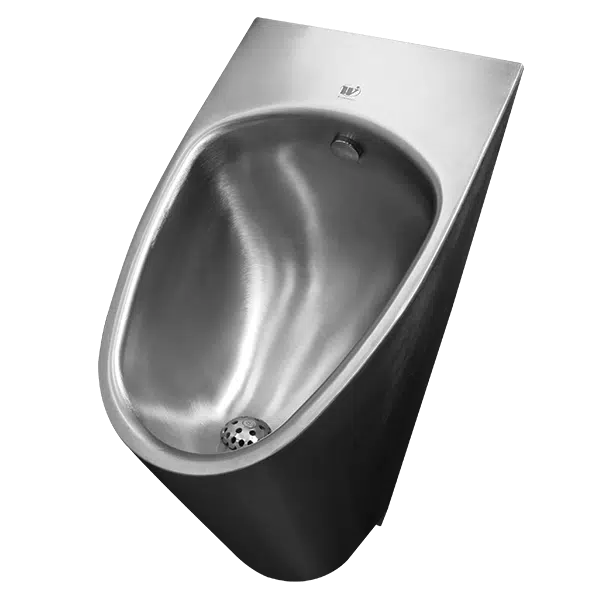

The Willoughby ASUW-1314-HEU Stainless Steel Single Person Rear Mounted Ligature-Resistant ADA-Compliant Contoured Washout Flush High Efficiency Urinal is a single-user fixture for use in security and behavioral environments with an accessible mechanical chase.
Fixtures are all-welded, fabricated from 16 gauge, Type 304 stainless steel polished to a #4 satin finish, with contoured interior and exterior surfaces. Standard ASUW-1314-HEU fixtures come with machined stainless steel flush nozzle, 1-1/2” F.I.P. slip-joint P-trap, 3/4” N.P.T. male flush inlet, and standard 4-point mounting. It has been thoughtfully designed to minimize potential ligature points.
The ASUW-1314-HEU urinal can be supplied with a variety of optional features including: valves, controls, plumbing, etc. All connections between the outside plumbing and the fixture are made within or at the rear of the vandal-resistant, stainless steel urinal.
The ASUW-1314-HEU urinal fixture meets all applicable ADA, CBC, ANSI, and UFAS accessibility guidelines when mounted at the correct applicable rim height above the finished floor.
