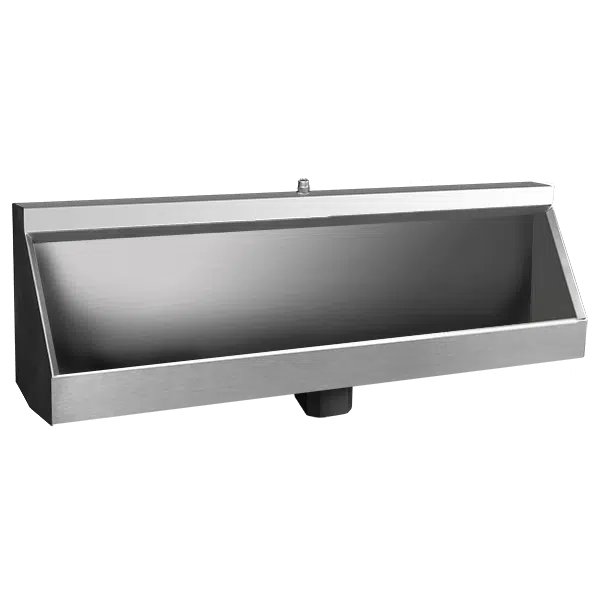

The Willoughby UW-1800 Series Stainless Steel Multi-Person Rear Mounted Washout Trough Urinal is a multiple-user fixture for use in security environments with an accessible mechanical chase.
Fixtures are all-welded, fabricated from 14 gauge, Type 304 stainless steel polished to a #4 satin finish. Standard UW-1800 Series fixtures come with full perimeter flushing rim, integral stainless steel P-trap, and standard 8-point mounting. Several trough lengths are available; see Spec Page for details.
The UW-1800 Series urinal can be supplied with a variety of optional features including: valves, controls, plumbing, etc. All connections between the outside plumbing and the fixture are made at the rear (and top, on Top Spud fixtures) of the vandal-resistant, stainless steel urinal.
